BioBio Reagent 50 BPM Automatic Filling And Capping Machine With Ceramic Piston Pump For VTM Tube Reagent 50 BPM Automatic Filling And Capping Machine With Ceramic Piston Pump For VTM Tube
Feature
1 Small size, compact structure, and reasonable and complete layout of functional modules to make the machine convenient for maintenance;
2 the two major functions of filling and capping are in-line production, continuous operation without manual assistance;
3 the operation of the machine can be done by only one person(including feeding and receiving), which can greatly save the cost of employment and one-time investment in equipment
A. The working principle of filling:
The main engine of this machine runs as the astrolabe to complete the circular intermittent movement, which is the main astrolabe for filling and capping. The ceramic pump is used for filling, double-head pre-capping mechanism, and double-head capping mechanism. Bottle loading adopts automatic bottle unscrambler; it is automatically picked up by the cap-removing manipulator and sent to the capping station. After capping completed, it is connected to the labeling area through the transition star plate, and then the finished product is collected.
B. Lid and cover work station:
The cap loading adopts shake pan. The vibration hopper is caused by the vibration of the electromagnet in the oscillator hopper to make the cap be ordered and the machine hand cap the cap to load on the bottle to finish the cap loading action.
Parameter
| Speed | 3000-3600 BPH(2ml Cryo tube) |
| Filling range | 0.2-2.9ml |
| Accuray | ±0.5% |
| Power | Roughly 3.5KW 220V 50Hz |
| Air | 0.6~0.8Mpa Air consume:about 1m3/h |
| Size | According to the actual design |

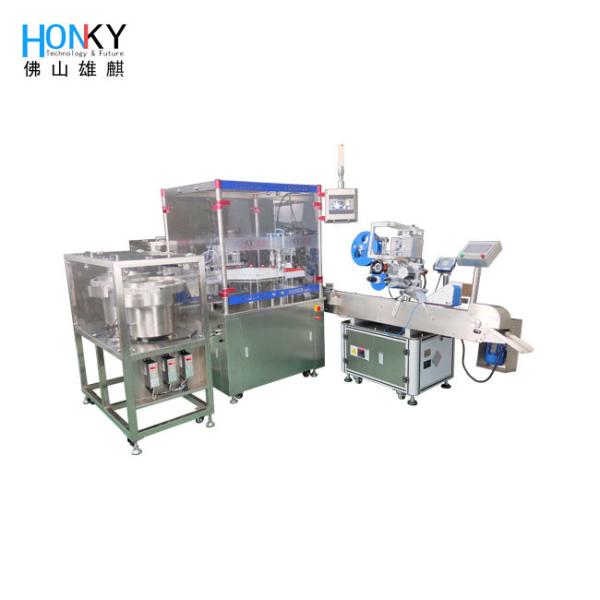

Auto Filling Machine display
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
Product Tags:
|
|
50 Bottle / Min Automatic Filling Machine For VTM Tube Images
|
